ソフトタッピング用モノリシックシリコンAFMプローブです。反転ティップにより、高いサンプルに対しても対称性の良いイメージングを可能にします。また安定したサイズのティップ先端により、高分解能と高い繰り返し再現性をご提供します。
AFMホルダーチップはほとんどの市販AFMに取り付けられます。
液中での測定では、背面金コートの Tap150GD-G もしくは全面金コートの Tap150GB-Gをお使いください!
高品質かつ低価格のプローブをお客様に!
この製品にはホルダーチップの背面にアライメント溝があります

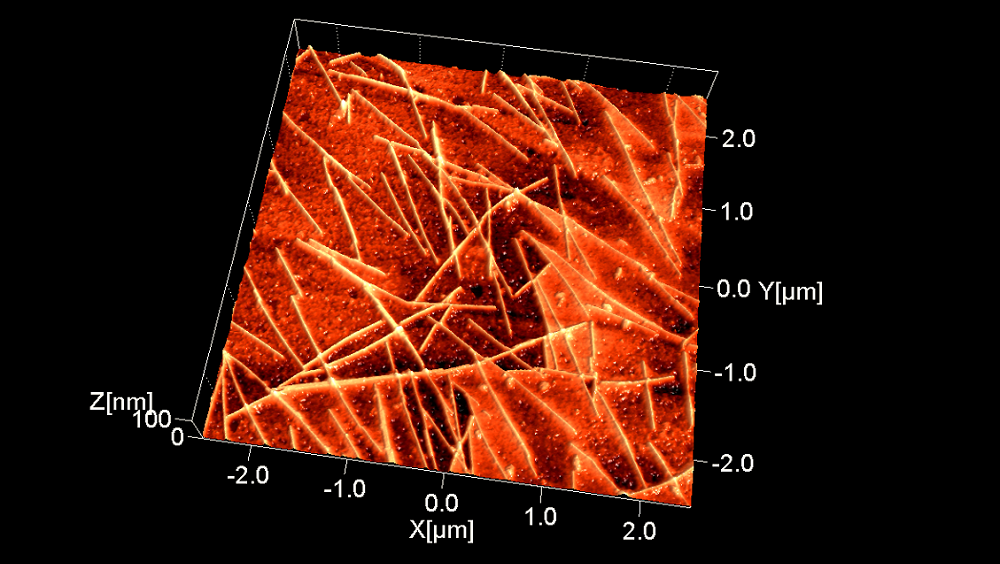

The first virus ever discovered and one of the most thoroughly researched, the tobacco mosaic virus (TMV) attacks various plant species and especially tobacco. The name of the rod-shaped RNA virus comes from the mosaic-like symptoms it causes.
スキャン BudgetSensors Tap150Al-G AFM probe, 5 micron scan size
Image courtesy of Dr. Yordan Stefanov, Innovative Solutions Bulgaria
A definite favorite of AFM researchers worldwide (or at least of the one who produced this image), Lindt’s 99% cocoa Excellence bar has very intense cocoa taste. The topography image of a bar’s back surface is rendered in 3D and overlaid with the phase image. The false-color yellowish spots are regions of growing cocoa butter crystals.
スキャン BudgetSensors Tap150Al-G AFM probe, 15 micron scan size
Image courtesy of Dr. Yordan Stefanov, Innovative Solutions Bulgaria; inspired by Scott MacLaren, UIUC, USA

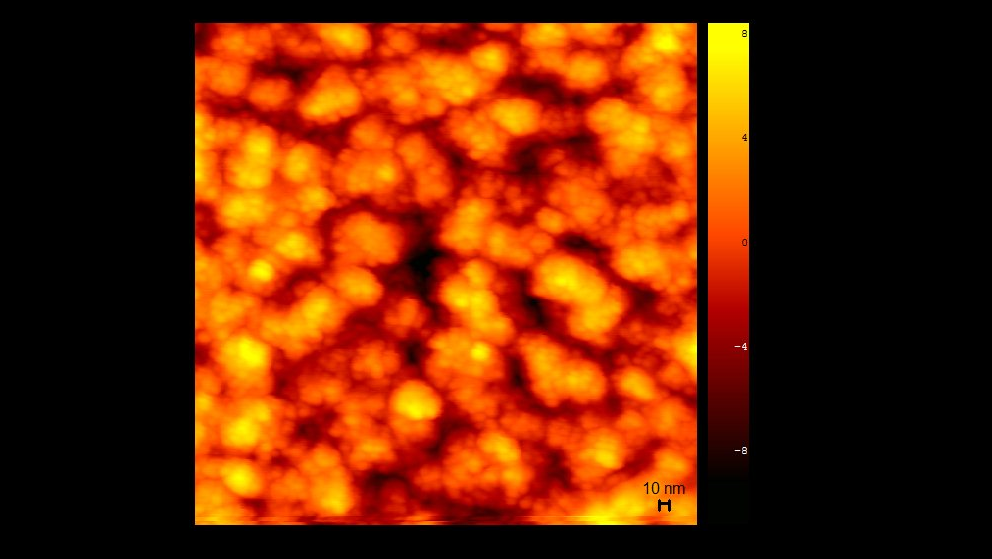

Topography of CdSe thin film. Estimated mean nanocrystalline size is less than 10nm.
スキャン BudgetSensors Tap150Al-G AFM probe on a Bruker MultiMove V AFM system. 50 nanometer scan size
Image courtesy of Dr. Irina Bineva, Institute of Solid State Physics, BAS
Cd enriched areas in Zn0.4Cd0.6Se, topography and phase image. In order to obtain simultaneously good contrast in the phase image without distortion in the height image, due to surface damage, interleave mode with light tapping conditions for the height scan, and hard tapping for the phase image was used, repectively.
スキャン BudgetSensors Tap150Al-G AFM probe on a Bruker MultiMode V AFM system. 500 nanometer scan size
Image courtesy of Dr. Irina Bineva, Institute of Solid State Physics, BAS
Zn0.5Cd0.5Se thin film. Z axis max value is 16.6 nm.
スキャン BudgetSensors Tap150Al-G AFM probe on a Bruker MultiMode V AFM system, 1 micron scan size
Image courtesy of Dr. Irina Bineva, Institute of Solid State Physics, BAS
